KYN28-12

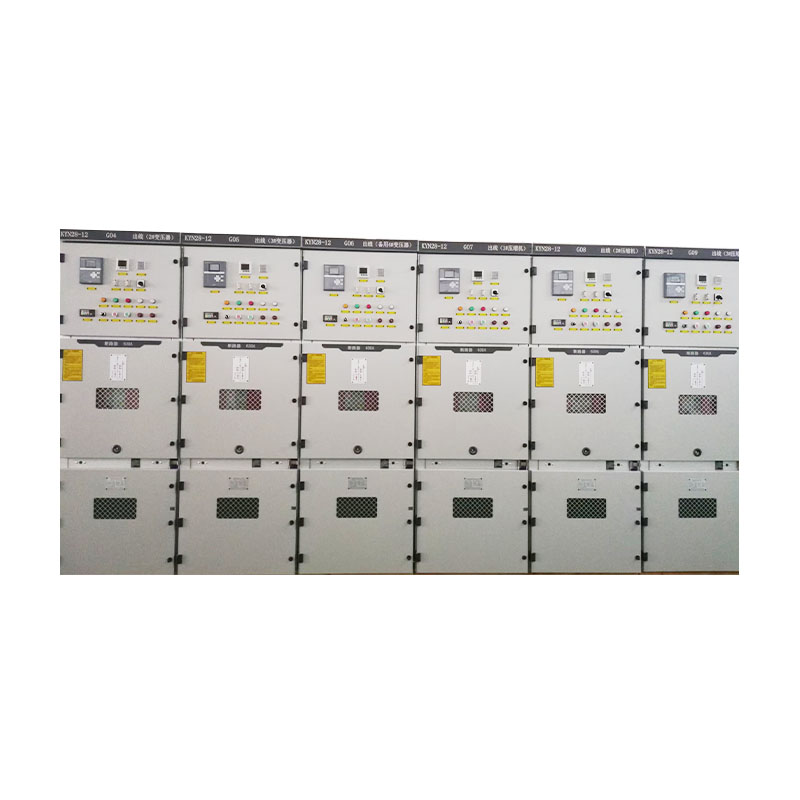

KYN28 metal armored center switchgear is a center switchgear equipped with new VS1, VD4 and other vacuum circuit breakers with excellent performance, based on the original switchgear of the same type, by improving and digesting the latest cabinet types at home and abroad. This type of switchgear is superior to other cabinet types in terms of structure, circuit breaker and other performance indicators. It is currently the switchgear with the highest rate of drawing and the most widely used in China. It is widely used in power plants, substations, factories and mines, and large and medium-sized commercial and civil buildings.

Consult

Features
Technical Indicators
Overall Dimension

The armored withdrawable high-voltage switchgear is an advanced equipment designed to meet the complex needs of modern power systems, combining excellent protection performance with convenient operation characteristics. Strong armor protection The high-strength metal armor structure provides reliable physical protection for internal electrical components. It can effectively resist external impact, collision and harsh environmental influences, and ensure the stable operation of the equipment and the safety of the power system, whether in the complex environment of industrial plants or in the changing climate conditions outdoors. Withdrawable design, convenient maintenance The unique withdrawable unit design makes it easy and quick to repair and replace electrical components. Without large-scale power outages, the faulty unit can be withdrawn for inspection or replacement, which greatly shortens the maintenance time and improves the continuity and reliability of power supply. Excellent electrical component configuration It is equipped with high-quality circuit breakers, contactors, relays and other electrical components of well-known brands, with excellent electrical performance and stable working performance. These components have been strictly screened and tested to withstand the impact of high voltage and high current, ensuring that the switchgear can operate stably under various working conditions. Comprehensive protection and monitoring functions It has a variety of protection mechanisms such as overcurrent protection, short circuit protection, grounding protection, etc., and monitors power parameters in real time. Once an abnormal situation occurs, it can quickly and accurately take protection measures to minimize the scope of the fault. At the same time, the intelligent monitoring system can feedback the operating status of the switch cabinet to the operator in real time to achieve remote monitoring and management. Flexible configuration and wide application It can be flexibly configured according to different user needs and power system requirements to meet various complex power distribution and control scenarios. It is widely used in power plants, substations, industrial and mining enterprises, high-rise buildings and other fields to provide strong support for the stable transmission and reasonable distribution of electricity. Strict quality control system In the production process, we strictly follow the relevant international and domestic standards and quality specifications, and carry out strict quality inspection and control from the procurement of raw materials to every link of the production process. Ensure that each armored withdrawable high-voltage switch cabinet has excellent quality and reliable performance. Choosing our armored withdrawable high-voltage switch cabinet is to choose a sturdy, reliable, efficient and intelligent guardian for your power system to protect your power business.
Project Parameter Unit Rated voltage 6.3 12 KV Rated current 630 1250 1600 2000 2500 3150 4000 A Rated frequency 50 60 HZ Rated current of switchgear 630 1250 1600 2000 2500 3150 4000 A Circuit breaker rated current 630 1250 1600 2000 2500 3150 4000 A Rated short-time withstand current 16 20 25 31.5 40 KA/4S Rated peak withstand current 40 50 63 80 100 KA Rated short-circuit breaking current 16 20 25 31.5 40 KA Rated short-circuit making current 40 50 63 80 100 KA Rated insulation level power frequency withstand voltage Phase-phase-phase-ground 42KV/1min Break 48KV/1min Lightning impulse withstand voltage Phase-phase-phase-ground 75KV/1min Break 85KV/1min Circuit breaker service life 10000 times Protection level Housing IP4X Compartment and circuit breaker door open IP2X Ambient temperature and humidity -15℃~40℃ Daily average less than 95% Monthly average less than 90% Altitude No more than 2000 Rice

Project	Parameter	Unit
Rated voltage	6.3 12	KV
Rated current	630 1250 1600 2000 2500 3150 4000	A
Rated frequency	50 60	HZ
Rated current of switchgear	630 1250 1600 2000 2500 3150 4000	A
Circuit breaker rated current	630 1250 1600 2000 2500 3150 4000	A
Rated short-time withstand current	16 20 25 31.5 40	KA/4S
Rated peak withstand current	40 50 63 80 100	KA
Rated short-circuit breaking current	16 20 25 31.5 40	KA
Rated short-circuit making current	40 50 63 80 100	KA
Rated insulation level power frequency withstand voltage	Phase-phase-phase-ground 42KV/1min Break 48KV/1min
Lightning impulse withstand voltage	Phase-phase-phase-ground 75KV/1min Break 85KV/1min
Circuit breaker service life	10000	times
Protection level	Housing IP4X Compartment and circuit breaker door open IP2X
Ambient temperature and humidity	-15℃~40℃ Daily average less than 95% Monthly average less than 90%
Altitude	No more than 2000	Rice
